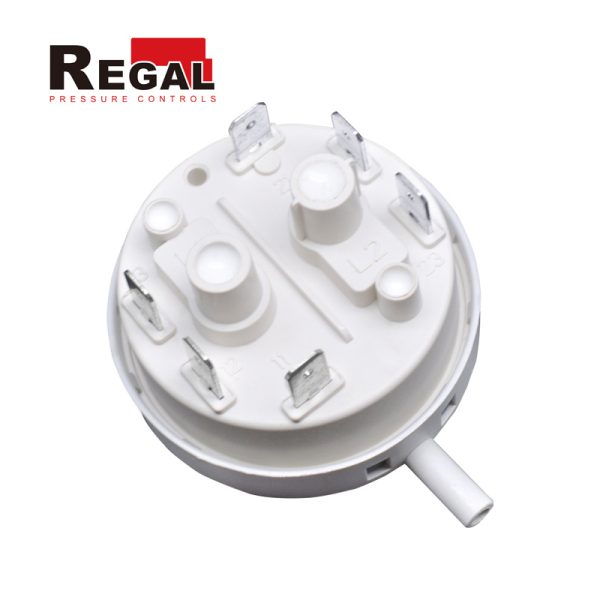

High Low Water Level Sensor Switch 20 to 200mmW.C. (3)

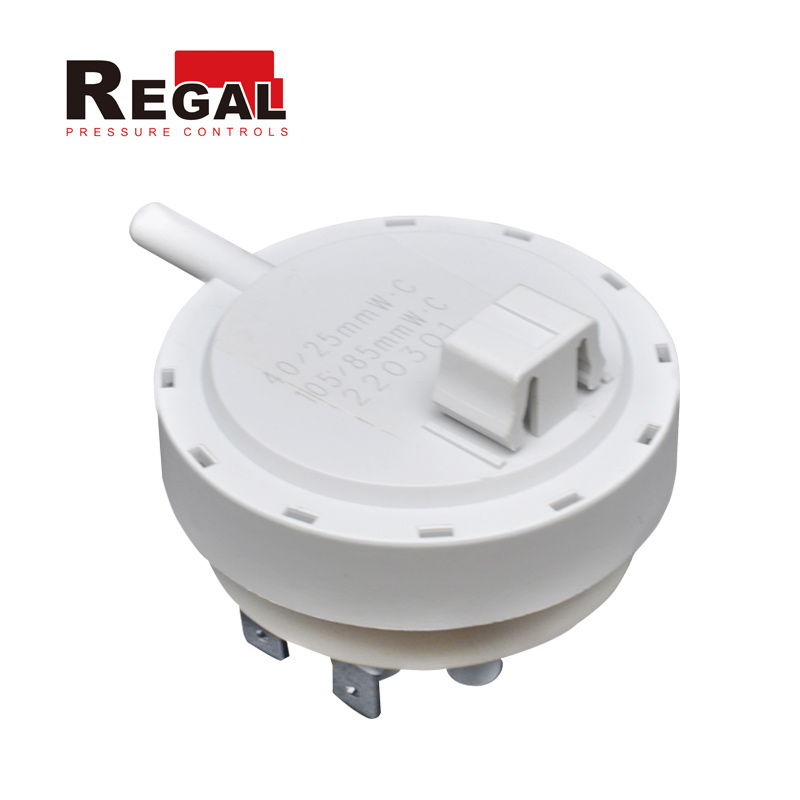

High Low Water Level Sensor Switch 20 to 200mmW.C. (1)

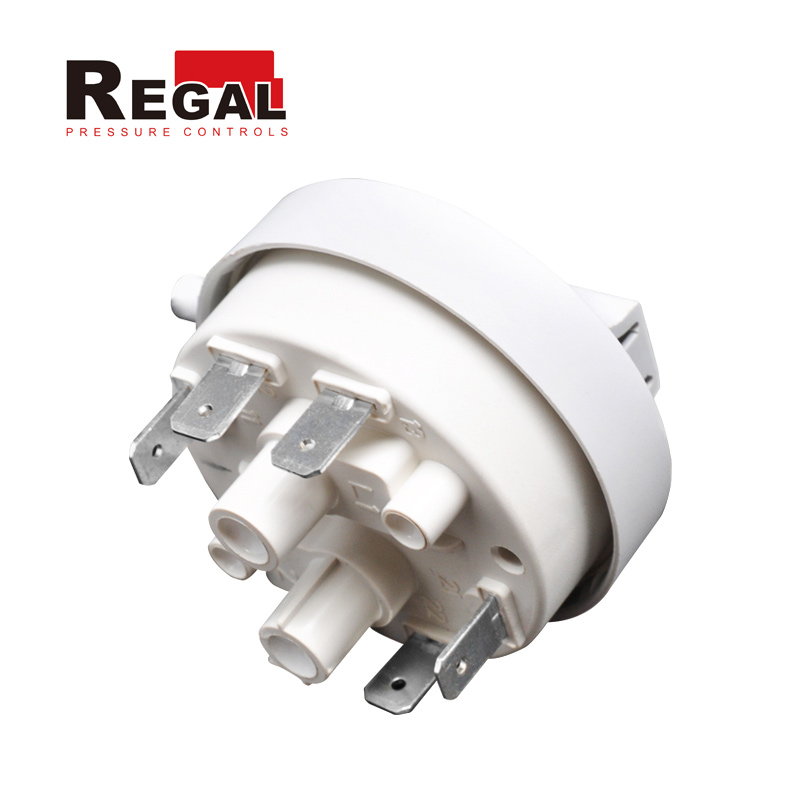

High Low Water Level Sensor Switch 20 to 200mmW.C.

B2G high low water level sensor switch can control 2 water level in the same time as well as it also has overflow protection function. Which has a natural advantage in the product function and design.

Share This Page

High Low Water Level Sensor Switch Description

The high low water level sensor switch can control 2 water levels in the same time, and one is the low water level which range is 20~100mmw.c., and another one is 60~200mmw.c.. So, user can decide how much the low & high water level is when in manufacturing.

Meanwhile, this B2 water level switch is also suitable for the electronic control or electronic & mechanical Mix-control ways. So, not matter what your desin of your dishwasher, it can work for your design, which has a good compatibility. Besides, the overflow protection function design in this high low water level sensor switch will let it has a natural advantage on the market. So that it will has a great working performance in commercial dishwasher, or medical device washer.

What’s more, the switch shell material is used the UL94-V0 engineering plastics which is the fire resist material. Difference with the cheap-price water level switch, it can control the water column in a high degree, which is +/-5mmw.c.

Welcome to click the link to see more water level switches information, or check another pressure switch or flow sensor.

High Low Water Level Sensor Switch Specification

Model Number	B2G Water Level Switch Washer
Circuit	SPST-NO or SPDT
Working Medium	Air or non-corrosive gas
Rating	L11-L12(3): 1(0.5) @ 125/250 VAC; L21-L22(3): 1(0.5) @ 125/250 VAC L11-L12(3): 1(0.5) @ 125/250 VAC; L21-L22(3): 1(0.5) @ 125/250 VAC
Tube Interface	6.3 outer diameter which is suitable for the 5mm inner diameter tube
Terminals	6.3*0.8 mm (#250)
Low Water Level	Range: 20~100mmw.c., tolerance: +/-5mmw.c
High Water Level	Range: 60~200mmw.c., tolerance: +/-5mmw.c
Overload pressure	760mmw.c. (7.6 kPa)
Working Temperature	85℃ max.
Interface size	5.5mm outer diameter, suitable for 5mm inner diameter hose
Installation direction	The diaphragm is in a vertical plane
Diaphragm Material	High-performance silica gel, long-term use temperature >150℃.
Shell Material	Engineering plastics PA+GF(UL94-V0 fire rating )
Mechanical Life	50,000 cycles
Electrical Life	100,00 cycles for main circuit
